M240 V4 Series Industrial IP MODEM is an IoT wireless data terminal, using public cellular network to provide users with wireless long distance data transmission. The product supports RS232 and RS485 interfaces, which can be directly connected to serial devices to achieve transparent data transmission function. Low power consumption design, provide 2 ADC, 3 DI/DO, can realize the functions of digital input/output, pulse output, analog input, pulse counting, etc. This product has been widely used in the M2M industry in the IoT industry chain.
High-powered industrial cellular module
High-powered industrial 32 bits CPU
Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest
Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function
Housing: iron, providing IP30 protection
Power range: DC 5~35V
Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when offline to make it always online
RS232/RS485/RS422 ports:15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and overvoltage protection
Antenna port: lightning protection(optional)
Standard and Convenience

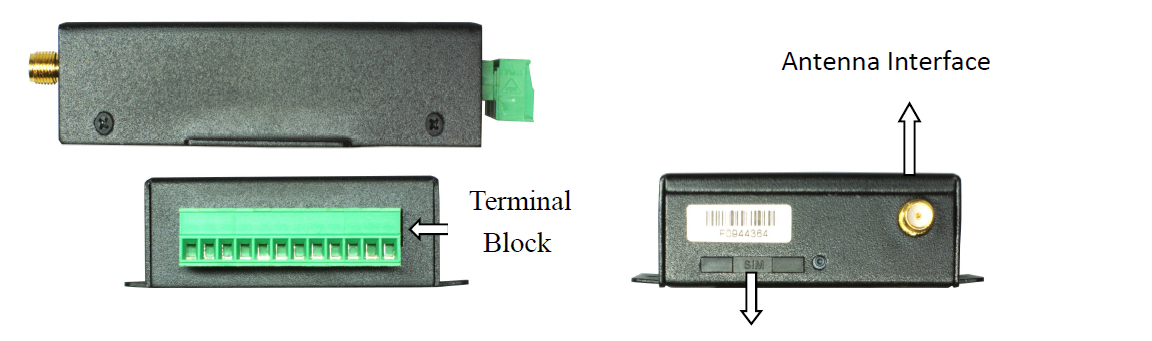

Adopt terminal block interface, convenient for industrial application
Support standard RS232/RS485 ports that can connect to serial devices directly
TTL logic level RS232 interface can be customized
Support intellectual mode, enter into communication state automatically when powered
Provide management software for remote management
Support several work modes
Convenient configuration and maintenance interface
High-performance
1. Support TCP server and support multi TCP client connection(optional)
2. Support double data centers, one main and another backup
3. Convenient configuration and maintenance interface
4. Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
5. Support multi data centers and it can support 5 data centers at the same time
6. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
7. Support dynamic domain name(DDNS) and IP access to data center
8. Design with standard TCP/IP protocol stack
9. Support APN/VPDN
aCellular Specification
|
Hardware System
|
Items |
Contents |
|
CPU |
Industrial-grade 32-bit communication processor |
|
Flash |
512KB (Can customize to 8MB) |
|
DDR2 |
256KB |
Interfaces
|
Items |
Contents |
|
Serial |
1 x RS232 + 1 x RS485，with 15KV ESD protection Data bit：5, 6, 7, 8 Stop bit：1, 1.5, 2 Check ：None, Even, Odd Baud rate：1200~230400 bits/s |
|
LED Indicators |
“PWR”, “Online”, “System” |
|
Antenna Interface |
Cellular: Standard SMA female antenna interface, characteristic impedance: 50 Ω |
|
SIM/UIM Slot |
Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD |
|
Power Interface |
Terminal |
Note: There may be differences between models of accessories and interfaces, actual products shall prevail.
Power
|
Items |
Contents |
|
Input Voltage |
DC 12V/0.5A |
|
Accepted Range |
DC 5~36V |
Power Consumption
|
Work Mode |
Consumption |
|
Communicating |
20~65mA @12VDC (2G:20~40 mA 4G:20~65mA) 20~95mA @9VDC (2G:30~45 mA 4G:20~95mA) |
|
Standby |
15~30 mA @12VDC 20~40 mA @9VDC |
