*Support speed limit
*Support VOLTE(VOIP Optional).
|

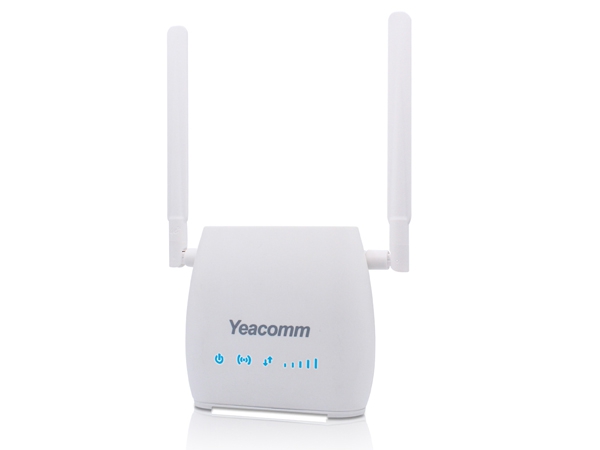

YF-S11 |
Technical specifications |
|
|
4G Platform |
ZTE |
|
|
Modem |
LTE-FDD/TDD-LTE/WCDMA ( Frequency can be customized ) |
|
|
LTE |
FDD: B1/B2/B3/B4/B5/B7/B8/B20, B1/B2/B3/B4/B5/B7/B8/B28 (Optional) TDD Band 38/39/40/41,
WCDMA: 900/2100Mhz, 850/900/1900/2100Mhz(Optional)
GSM: 850/900/1800/1900Mhz
Frequency can be customized according to your requirements
|
|
|
3G/2G |
WCDMA: 850/900/1900/2100Mhz GSM:850/900/1800/1900Mhz |
|
|
Rate level |
CAT4 DL:150Mbps / UL:50Mbps |
|
|
Transmitting power |
23dBm |
|
|
Antenna |
External antenna，Gain>5db |
|
|
WIFI |
||
|
WIFI Band |
2.4GHz,802.11b/g/n |
|
|
WIFI Rate |
Highest rate 144Mbps |
|
|
WIFI Standard |
IEEE 802.11b/g/n |
|
|
WIFI RF Characteristics |
Highest transmit power 22dBm，sensitivity is better than -77dBm |
|
|
Number of linking users |
Maximum number is 32 |
|
|
CSFB |
support |
|
|
Network Features |
||
|
Networking protocols |
PPTP、L2TP、IPsec(Optional)、PPPoE、DHCP、Client/Server、NAPT、NTP |
|
|
High-speed router |
Built-in DHCP Server，DNS Client，support NAT |
|
|
Dialing function |
Manual dialing，autodialing，PPPOE dialing。 |
|
|
|
Support 1.8V/3V powered SIM/USIM card、Support encryption card，Support |
|
|
Management
|
||
|
Web smart |
support |
|
|
Centralized network management |
support |
|
|
Remote Upgrade |
support |
|
|
Security |
||
|
Security Features |
Support port filtering, IP filtering, MAC filtering, URL filtering, MAC address binding |
|
|
Speed control |
Support UL and DL speed limit , port speed limit , |
|
|
Hardware |
||
|
LAN |
1*RJ-45 |
|
|
RJ11 |
1*RJ-11 |
|
|
PSU |
DC2.0 12V @ 500mA， |
|
|
Input |
5-15V |
|
|
light |
power，network，signal，LAN |
|
|
Physical Characteristics |
||
|
Working temperature |
-20～50℃ |
|
|
Stock temperature |
-40～85℃ |
|
|
huminity |
≤95％ |
|
File Name : Type: Size: Version:
Yeacomm YF-S11 4g LTE indoor V... PDF 318.08 KB
