Item

              Description

Technical

standards

WAN:

LTE-A/LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM

WLAN: 802.11b/g/n/ac

Working bands

Standard:l

FDD-LTE
B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
TDD-LTE B34/B38/B39/B40/B41(200M)

The frequencies could be customized for quantity order

Speed

FDD - LTE Downlink：300Mbps， Uplink：50Mbps

TDD-LTE:  Downlink：226Mbps， Uplink：28Mbps

HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed)

HSUPA: 5.76Mbps (upload speed)/ HSDPA:7.2Mbps(download speed:)

UMTS:384Kbps (download speed/upload speed)

Wifi

WIFI Standard

IEEE 802.11b/g/n/ac

Wi-Fi Channel BW

20MHz, 40MHz,80MHz(ac)

RF power

15 dBm/2.4G;18 dBm/5G;

Wifi Antennas

4 Built-in wifi antennas

Wifi users

Max up to 32 users

CSFB

Support

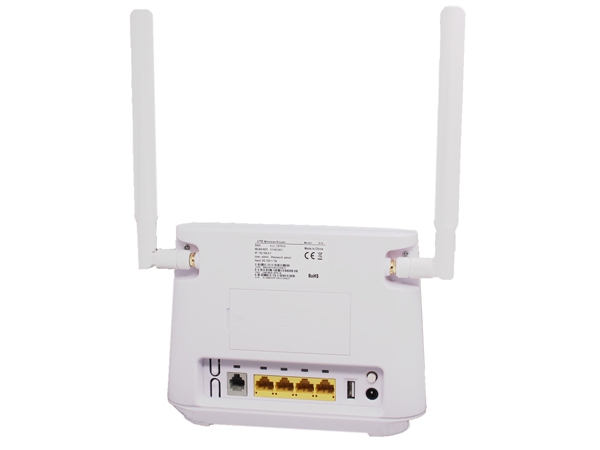

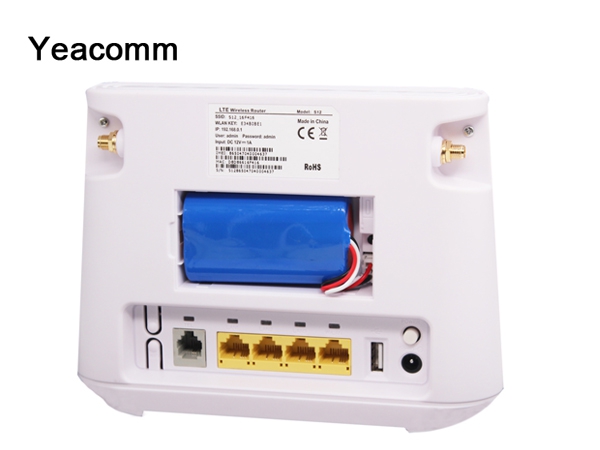

External Port

4* Gigabit RJ45 port (1*WAN/LAN, 3* Lan)

1*RJ11

2*SMA external antenna port

1*sim card slot

Buttons

One power button

One WPS button

One reset button

Antenna

External antenna，Gain>5db

PSU

12V/2A

power

9-18V

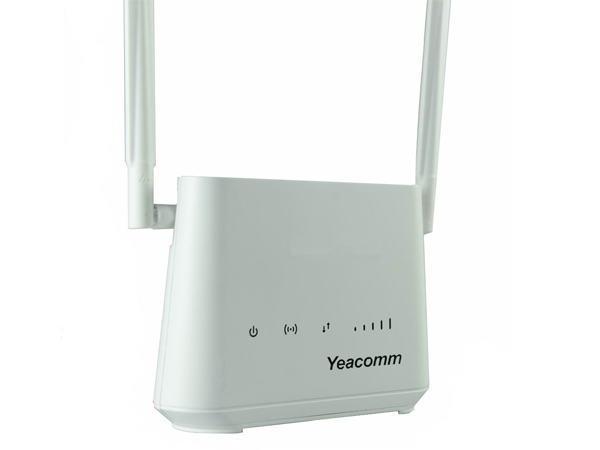

lights

11 LED Indicators (PWR, Wi-Fi, 4G/LTE, RF Signal)

Diemensions

180mm*132mm*48mm

Temperature

Working temperature

-20～50℃

Storage temperature

40～85℃

NAT

Supports NAT and Network Address and Port

Translation (NAPT)

Supports fragmented message identification

during common NAT

DHCP Server

Enables and disables the DHCP server

Configures DHCP server address pools

Sets the lease time.

Displays the status of the DHCP server address pools, including host names, Media Access Control (MAC) addresses, IP addresses, and remaining lease time

Firewall

Enables and disables the firewall.

Filters LAN MAC addresses

Filters LAN IP addresses.

Filters URLs.

Supports port Mapping

Supports demilitarized zone (DMZ).

Supports Universal Plug and Play (UPnP).

Speed limit

SMS

Read, write, send SMS

MAC address

authentication

Supports the MAC address authentication whitelist.

Supports the MAC address authentication blacklist.

TR069

HTTP/HTTPS

Supports upload / download the ACS specified file

Support download CPE configuration file

Support configure & queries parameters

Support remote upgrade

Support CPE version update

Supports debugging operations

Support cycle monitor

VPN

Support PPTP/L2TP/SSL VPN/GRE/IP SEC

IPV6

IPv6/IPv4 dual stack

Frequency locking

Support

Carrier SIM Lock

Support

Multi-APN

3

Working mode

NAT/ Bridge/ Router mode

Remote upgrade

Support
