| Frequency Band |
Standard Version:
5G NR: N1/N28/N41/N77/N78/N79
LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28
LTE-TDD: B34/B38/B39/B40/B41
WCDMA:B1/B2/B5/B8
Optional Version :
5G NR:
N1/N3/N5*/N7/N8/N20/N28/N38/N40/N41/N66*/N71/N77/ N78
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B/B66
LTE-TDD: B38/B40/B41
WCDMA:B1/B2/B5/B8
|
| MIMO |
5G NR: DL 4×4 MIMO,UL 2×2 MIMO
LTE: DL 4×4 MIMO
|
| Theoretical Bandwidth |
5G NR: Downlink 2.6Gbps, uplink 1Gbps
LTE Cat12: Downlink 600Mbps, uplink 150Mbps
|
| WIFI |
IEEE802.11 a/b/g/n 2.4GHz (only for easy device configuration)
|
| CPU | MTK7621 CPU@880MHz,Dual-core |
| 5G Chipset | Unisoc UDX710 |
| Flash |
128MB |
| DDR3 | 512MB |
| Network Status |
Signal strength
Network type(5G/4G)
SIM card status
Wi-Fi Status
LAN Status
|
| System Status |
Mobile parameters,
APN/DHCP/Wi-Fi information, Memory details,
Version/Device information
|
| Internet Settings |
Network mode setup,
Data switch,
Roaming setup
|
| APN Setup |
APN name,
Nat Switch on APN bear,
PDP(IPV4/IPV6/IPV4V6),
MTU size
|
| SIM Card |
PIN Management
SIM card Authentication
|
| DHCP Setup | Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time |
| Static Route | Route Setup on WAN/LAN interface |
| DDNS | Support |
| Band Lock | Support |
| PCI Lock | Support |
| Cell Lock | Support |
| Carrier SIM Lock | Support |
| VPN |
PPTP, L2TP, IPSEC, Wireguard(optional), Zerotier(optional)
|
| Backup/restore | Encryption backup current settings and restore the backup settings (Export/Import Configuration) |
| Work Mode | NAT/ Router mode |
| Software Update |
WebUI update
TR069 update
|
| TR069 (Optional) |
HTTP/HTTPS
Supports upload / download the ACS specified file
Support download CPE configuration file
Support configure & queries parameters
Support remote upgrade
Support cycle monitor
|
| SNMP (Optional) |
Support |
| Diagnostics |
Ping/Trace/Tcpdump,
Export current diagnosis results and operation logs
|
| PoE/LAN Port | 1 x Gigabit RJ45 LAN Port with PoE |
| DC Power Interface | 1 x Three-core DC locomotive power socket, built-in power reverse protection |
| Indicator | Power, Internet, WIFI, 4G/5G, Signal |
| SIM/UIM Slot | 2 x Nano-SIM Card slots, Compatible with eSIM card |
| USB Port | Type C 2.0 |
| Reset Button | Reset the parameters to default setting |
| PoE Input |
48V/0.3A (IEEE 802.3af)
|
| DC Input | 12V/1.5A |
| Outer Shell | ABS+PC Material Cover with Metal Base |
| Waterproof Level | IP67 |

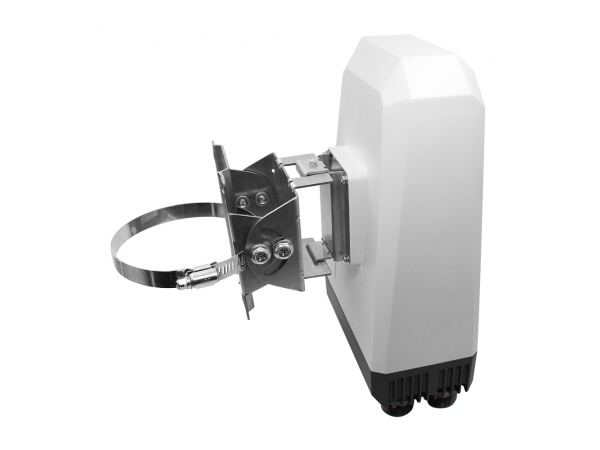

| Installation | Pole Mounting or Wall Mounting |
| Dimensions | 241x156x89 mm |
| Weight | ≤1.1kg |
| Operating Temperature | -30~+60ºC |
| Storage Temperature | -40~+85ºC |
| Humidity | 5%-95% (No-condensing) |
